library(mlumr)
library(ggplot2)
options(mc.cores = parallel::detectCores())

This vignette is a complete worked example of an unanchored indirect comparison for a count endpoint, using mlumr’s bundled caries_ipd and caries_agd example data. It is the count-outcome analogue of vignette("binary-outcomes"); for the shared data-preparation machinery see vignette("data-preparation"), for sampler/prior/diagnostic detail see vignette("fitting-and-diagnostics"), and for how to choose between methods see vignette("choosing-a-method").

Simulated data. caries_ipd / caries_agd are simulated (not real patient records): they are generated with the synthpop package (sequential CART) (Nowok et al. 2016) from a silver-diamine-fluoride vs nano-silver-fluoride dental caries trial (Ammar et al. 2025) (CC BY 4.0), preserving its covariate relationships (fidelity validated with the syntheticdata package), much as multinma builds its own example data. Because dmft was a balanced baseline characteristic in that trial, a plausible caries-arresting effect for SDF was imposed so the worked example has a meaningful treatment contrast. The two arms are treated as separate single-arm sources to illustrate an unanchored comparison.

Hypothetical single-arm trials. The source trial is randomized. Treating its SDF and NSF arms as two separate sources turns them into hypothetical single-arm trials and leaves fully disconnected evidence; we do this only to illustrate ML-UMR. In practice, randomized trials should never be analyzed this way: the randomized comparison, or ML-NMR or another appropriate method when trials are connected through a common arm, should be used for them. ML-UMR should only be used for fully unanchored, single-arm comparisons.

The clinical question

We want the relative efficacy of two topical agents on the dmft count (decayed, missing and filled teeth) in young children, when:

Index (IPD). We hold individual patient data for silver diamine fluoride (SDF), one count per child with a follow-up exposure.
Comparator (AgD). Only published aggregate data are available for nano-silver fluoride (NSF): a total event count, total exposure, and a baseline-characteristics table.

The two arms come from single-arm sources with no common comparator, so the comparison is unanchored and relies on the conditional-constancy / shared-prognostic-factor assumptions discussed in vignette("introduction"). ML-UMR adjusts for cross-trial differences in prognostic factors by standardizing the IPD model to the comparator population (and vice versa).

The ML-UMR model

On the index IPD, ML-UMR fits a Poisson regression for the count with a log link and a log-exposure offset, \log\mathbb{E}[y_{ik}\mid x_i]=\log T_i+\mu_k+x_i^\top\beta_k, so \mu_k and \beta_k live on the log-rate scale (here there is one row per child, so the exposure T_i is constant). The aggregate comparator does not contribute patient rows; instead its likelihood is the individual rate integrated over the comparator covariate distribution f_{\text{AgD}}(x) implied by the published moments, \bar\lambda_k=\mathbb{E}[\lambda\mid \text{AgD population}]=\int\exp(\mu_k+x^\top\beta_k)\,f_{\text{AgD}}(x)\,dx, which mlumr approximates with quasi-Monte Carlo integration points (see Setting up the ML-UMR data). This is the same population-adjustment device as ML-NMR (Phillippo et al. 2020), specialized to the unanchored two-study case.

Two variants differ only in how the prognostic effects are shared across treatments:

SPFA (shared prognostic factors) assumes \beta_{\text{index}}=\beta_{\text{comparator}}=\beta, the conditional-constancy / shared-effect-modifier assumption.
Relaxed frees them, \beta_{\text{index}}\neq\beta_{\text{comparator}}, allowing effect modification at the cost of identifiability (the comparator coefficients are informed only by the single AgD likelihood term).

The population-standardized contrast is the rate ratio \mathrm{RR}=\bar\lambda_{\text{index}}/\bar\lambda_{\text{comparator}} (null = 1), reported in both populations.

data("caries_ipd")     # index IPD (SDF), bundled with mlumr
data("caries_agd")     # comparator AgD (NSF)

covariates <- c("age", "log_cfu")   # age carries the prognostic signal here

knitr::kable(data.frame(
  Arm = c("Index (SDF, IPD)", "Comparator (NSF, AgD)"),
  Children = c(nrow(caries_ipd), caries_agd$n),
  Total_dmft = c(sum(caries_ipd$dmft), caries_agd$r),
  Mean_dmft = c(mean(caries_ipd$dmft), caries_agd$r / caries_agd$E)
), caption = "dmft counts (index IPD vs comparator AgD)")

dmft counts (index IPD vs comparator AgD)
Arm	Children	Total_dmft	Mean_dmft
Index (SDF, IPD)	103	748	7.262136
Comparator (NSF, AgD)	97	881	9.082474

A glimpse of the index IPD (one row per child):

knitr::kable(head(caries_ipd), caption = "Index IPD (SDF), first rows")

Index IPD (SDF), first rows
study	treatment	subject	age	gender	log_cfu	dmft	exposure
Ammar 2025	SDF	1	3.9	0	10.82	5	1
Ammar 2025	SDF	2	4.5	1	11.51	10	1
Ammar 2025	SDF	3	4.0	0	11.51	11	1
Ammar 2025	SDF	4	5.5	0	10.82	10	1
Ammar 2025	SDF	5	4.0	0	11.16	6	1
Ammar 2025	SDF	6	4.0	1	11.51	9	1

Covariate balance

Population adjustment is motivated by the fact that the two trial populations differ on prognostic factors. Comparing the index sample means against the published comparator means shows the imbalance we must adjust for, here baseline bacterial load (log_cfu) is the covariate the two arms are most imbalanced on:

balance <- data.frame(
  Covariate     = c("Age (years)", "Baseline bacterial load (log CFU)"),
  Index_SDF     = c(mean(caries_ipd$age), mean(caries_ipd$log_cfu)),
  Comparator_NSF = c(caries_agd$age_mean, caries_agd$log_cfu_mean)
)
knitr::kable(balance, caption = "Prognostic-factor balance: index vs comparator population")

Prognostic-factor balance: index vs comparator population
Covariate	Index_SDF	Comparator_NSF
Age (years)	4.793204	4.660825
Baseline bacterial load (log CFU)	9.904466	11.031650

Setting up the ML-UMR data

For a Poisson IPD outcome use set_ipd() with family = "poisson", the count, and an exposure column; set_agd() takes the comparator total count (outcome_r), total exposure (outcome_E), and the covariate summaries. Covariate column suffixes (_mean, _sd) are stripped to match the IPD names.

ipd <- set_ipd(caries_ipd, treatment = "treatment", outcome = "dmft",
               family = "poisson", exposure = "exposure",
               covariates = covariates)
agd <- set_agd(caries_agd, treatment = "treatment", family = "poisson",
               outcome_r = "r", outcome_E = "E",
               cov_means = c("age_mean", "log_cfu_mean"),
               cov_sds   = c("age_sd", "log_cfu_sd"),
               cov_types = c("continuous", "continuous"))
dat <- combine_data(ipd, agd)
dat
#> Unanchored Comparison Data (Count)
#> ====================================
#>
#> Index treatment (IPD): SDF
#>   N = 103
#>   Total events = 748, Total exposure = 103.0
#>
#> Comparator treatment (AgD): NSF
#>   Total events = 881, Total exposure = 97.0
#>
#> Covariates ( 2 ): age, log_cfu
#> Integration points: not yet added (use add_integration())

The comparator covariate distribution is represented by quasi-Monte Carlo integration points drawn from each covariate’s marginal (here normals for age and log CFU), correlated via a Gaussian copula calibrated from the IPD. We use a modest n_int = 64 here so the vignette builds quickly; a real analysis would use several hundred or more (see vignette("data-preparation")).

dat <- add_integration(dat, n_int = 64,
                       age     = distr(qnorm, mean = age_mean, sd = age_sd),
                       log_cfu = distr(qnorm, mean = log_cfu_mean, sd = log_cfu_sd))

check_integration() confirms the quasi-Monte Carlo points reproduce the requested covariate moments, run it whenever covariates are correlated or n_int is small:

check_integration(
  dat,
  age     = distr(qnorm, mean = age_mean, sd = age_sd),
  log_cfu = distr(qnorm, mean = log_cfu_mean, sd = log_cfu_sd)
)
#> Integration check: n_int = 64 vs 128
#> Resolution heuristic, max relative difference: 0.0122
#> Caution: 1-5% marginal relative difference. Consider increasing n_int.
#> Declared-target fidelity, max relative difference: 0.0373
#> Caution: grid moments differ from declared AgD moments by 1-5%.
#> Joint: max |cor(current) - cor(doubled)|: 0.0347
#> Joint resolution stable within the package's 0.05 heuristic.
#> Target (spearman): max |cor(doubled) - cor_target|: 0.0095

Frequentist benchmarks

The unadjusted (naive) comparison ignores the covariate imbalance; STC adjusts for it by parametric G-computation. Both are fast and serve as reference points. Both return estimates on the log-rate (link) scale, so we exponentiate them to the rate-ratio scale when plotting alongside the Bayesian effects below.

res_naive <- naive(dat)
res_stc   <- stc(dat)
res_naive
#> Naive Unadjusted Indirect Comparison
#> =====================================
#>
#> Treatments: SDF vs NSF
#>
#> Population basis: index-study outcome versus comparator-population outcome; no common standardized target.
#>
#> Rates:
#>   Index (IPD):      7.2621
#>   Comparator (AgD): 9.0825
#>
#> Log Rate Ratio: -0.2237 (SE: 0.0497)
#> 95% CI: [-0.3211, -0.1262]
#>
#> All effect measures (95% CI):
#>   Log rate ratio                -0.2237 (SE 0.0497) [-0.3211, -0.1262]
#>   Rate ratio                     0.7996 [0.7253, 0.8814]
#>   Rate difference               -1.8203 (SE 0.4051) [-2.6144, -1.0263]
res_stc
#> Simulated Treatment Comparison (G-computation)
#> ===============================================
#>
#> Treatments: SDF vs NSF
#>
#> Estimand population: comparator
#> Treating this as the index-population effect requires a separate effect-equality assumption; this calculation does not transport to the index population.
#>
#> Marginalized rate (index trt, comp pop): 7.3761
#> Observed rate (comp trt, comp pop):      9.0825
#>
#> Log Rate Ratio: -0.2081 (SE: 0.0514)
#> 95% CI: [-0.3089, -0.1074]
#>
#> All effect measures (95% CI):
#>   Log rate ratio                -0.2081 (SE 0.0514) [-0.3089, -0.1074]
#>   Rate ratio                     0.8121 [0.7343, 0.8982]
#>   Rate difference               -1.7064 (SE 0.4191) [-2.5279, -0.8850]
#>
#> Outcome model coefficients:
#> (Intercept)         age     log_cfu
#>      2.5358     -0.1158     -0.0002

Fitting the ML-UMR models

For the Poisson family the canonical link is log and the likelihood uses log(exposure) as the offset, so coefficients are on the log-rate scale. We fit both the shared-prognostic-factor model (SPFA) and the relaxed model (treatment-specific prognostic effects). An autoscaled coefficient prior puts covariate contributions on a common SD scale; its numerical width still requires substantive and prior-predictive checking. The relaxed model uses a tighter prior and a higher adapt_delta because its comparator-specific coefficients lean on one aggregate row.

fit_spfa <- mlumr(dat, model = "spfa", link = "log",
                  prior_beta = prior_normal(0, 1, autoscale = TRUE),
                  chains = 4, iter = 2000, warmup = 1000, seed = 2026, refresh = 0)
#> Running MCMC with 4 parallel chains...
#>
#> Chain 1 finished in 0.2 seconds.
#> Chain 2 finished in 0.2 seconds.
#> Chain 3 finished in 0.2 seconds.
#> Chain 4 finished in 0.1 seconds.
#>
#> All 4 chains finished successfully.
#> Mean chain execution time: 0.2 seconds.
#> Total execution time: 0.5 seconds.
fit_relaxed <- mlumr(dat, model = "relaxed", link = "log",
                     prior_beta = prior_normal(0, 0.5, autoscale = TRUE),
                     chains = 4, iter = 2000, warmup = 1000,
                     adapt_delta = 0.95, seed = 2026, refresh = 0)
#> Running MCMC with 4 parallel chains...
#>
#> Chain 1 finished in 0.5 seconds.
#> Chain 2 finished in 0.5 seconds.
#> Chain 3 finished in 0.5 seconds.
#> Chain 4 finished in 0.4 seconds.
#>
#> All 4 chains finished successfully.
#> Mean chain execution time: 0.5 seconds.
#> Total execution time: 0.7 seconds.
summary(fit_spfa)
#> ML-UMR Model Summary
#> ====================
#>
#> Model: SPFA
#> Family: Count (Poisson)
#> Link: log
#> Engine: cmdstanr
#> Treatments: SDF (IPD) vs NSF (AgD)
#>
#> MCMC Diagnostics:
#>   Divergent transitions: 0
#>   Max treedepth hits: 0
#>   Max Rhat: 1.003
#>   Min ESS: 1628
#>
#> Intercepts (log scale):
#>       variable     mean         sd     2.5%    97.5%     Rhat
#>       mu_index 1.983608 0.03730084 1.911364 2.058515 1.000358
#>  mu_comparator 2.193447 0.03447661 2.124377 2.260211 1.000289
#>
#> Regression Coefficients:
#>       variable          mean         sd        2.5%       97.5%      Rhat
#>      beta[age] -1.167336e-01 0.05075941 -0.21546825 -0.01812022 0.9998555
#>  beta[log_cfu] -3.220407e-05 0.01262969 -0.02415036  0.02528450 0.9999284
#>
#> Marginal Treatment Effects:
#>   Rate Ratios:
#>          variable      mean         sd      2.5%     97.5%
#>       delta_index 0.8118294 0.04253929 0.7305854 0.8985652
#>  delta_comparator 0.8118294 0.04253929 0.7305854 0.8985652

Priors

These fits use \mu_k\sim\mathrm{N}(0,10^2) for the intercepts and autoscaled \beta\sim\mathrm{N}(0,1^2) for the coefficients. On the log scale this coefficient prior permits a wide range of rate ratios per covariate SD, but that observation does not calibrate it for this application. prior_summary() shows exactly what was passed to Stan; prior-predictive checks and sensitivity analyses determine whether the scales are suitable:

prior_summary(fit_spfa)
#> Priors for ML-UMR Fit
#> =====================
#>
#> Intercepts (mu_index, mu_comparator):
#>   normal(0, 10)
#>   (package default, mlumr 0.1.0.9000)
#>
#> Regression coefficients (beta):
#>   Family: normal
#>  coefficient mean scale autoscaled  sd_x
#>          age    0 1.296       TRUE 0.772
#>      log_cfu    0 0.315       TRUE 3.171
#>   (scale = user_scale / sd_x for autoscaled rows)

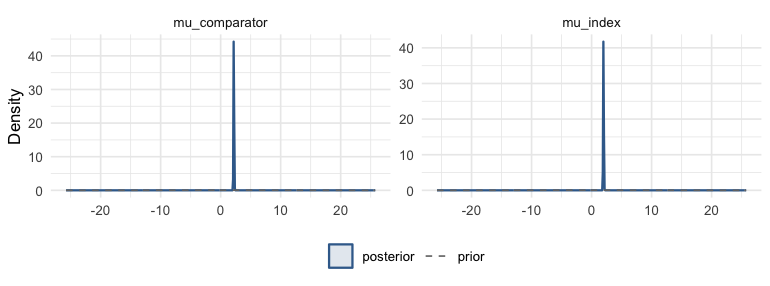

The data are substantially more informative than the priors, the posterior intercepts are much tighter than the \mathrm{N}(0,10) prior:

plot_prior_posterior(fit_spfa, pars = c("mu_index", "mu_comparator"))

plot of chunk prior-post

The log link and aggregation bias

The log link is nonlinear, so the aggregate rate is not the rate at the mean covariate. By Jensen’s inequality \mathbb{E}[\exp(\mu+x^\top\beta)]\neq\exp(\mu+\bar x^\top\beta), so “plugging in” the comparator covariate means would bias the aggregate-level likelihood. ML-UMR instead integrates \exp(\mu+x^\top\beta) over the QMC points (the integral above), evaluated with a numerically stable log-sum-exp so that large linear predictors do not overflow. This is the count analogue of the logit nonlinearity in vignette("binary-outcomes"), and it is exactly why the integration machinery (rather than mean-covariate plug-in) is needed.

Overdispersion

The Poisson model assumes the count mean equals its variance. Caries counts are often overdispersed (variance > mean, e.g. from unmodeled clustering), in which case the Poisson intervals are optimistically narrow. mlumr’s count family is Poisson and has no dispersion parameter. Diagnose it conditionally. Comparing var(dmft) against mean(dmft) answers a different question: a Poisson regression gives every subject its own fitted mean, so the marginal variance exceeds the marginal mean whenever the covariates explain anything, even when the model is exactly right. Fit the same regression with glm(family = poisson) on the IPD and compare its sum of squared Pearson residuals against the residual degrees of freedom; a ratio well above 1 is the evidence that matters. Where it is large, say that the reported intervals understate uncertainty. Do not call them a guaranteed lower bound: that follows for extra dispersion around a correct mean model, and a misspecified mean can move an interval either way. Prespecified prognostic covariates may explain part of the excess variation, but they are not a correction for it, and neither the naive contrast nor Poisson STC adjusts for residual overdispersion; both inherit the same assumption. Material overdispersion calls for a dispersion-aware model outside mlumr.

Convergence

mlumr() warns automatically about divergences, treedepth saturation, high \hat R, and low effective sample size. They are clean here:

data.frame(
  n_divergent  = fit_spfa$diagnostics$n_divergent,
  max_treedepth = fit_spfa$diagnostics$n_max_treedepth,
  max_Rhat     = round(max(fit_spfa$summary$Rhat, na.rm = TRUE), 3),
  min_ESS      = round(min(fit_spfa$summary$n_eff, na.rm = TRUE))
)
#>   n_divergent max_treedepth max_Rhat min_ESS
#> 1           0             0    1.003    1628

Treatment effects

For a Poisson outcome the population-standardized effect is the rate ratio (RR; null = 1), reported in both populations:

knitr::kable(marginal_effects(fit_spfa), caption = "SPFA standardized rate ratio (SDF vs NSF)")

SPFA standardized rate ratio (SDF vs NSF)
variable	effect	population	mean	sd	q2.5	q50	q97.5
delta_index	RR	Index	0.8118294	0.0425393	0.7305854	0.8107814	0.8985652
delta_comparator	RR	Comparator	0.8118294	0.0425393	0.7305854	0.8107814	0.8985652

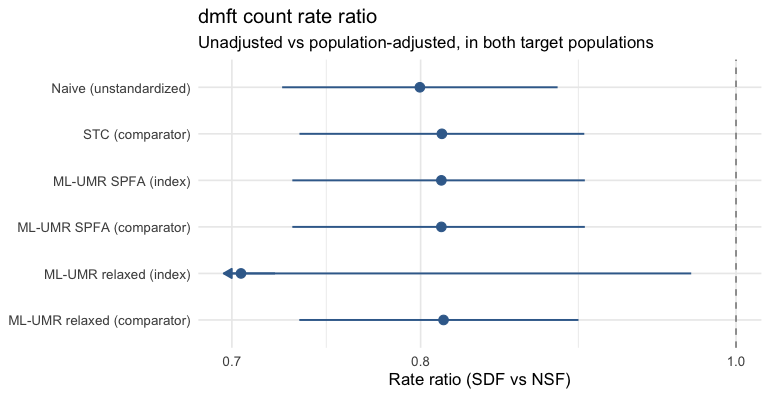

A forest plot makes the value of adjustment visible. It uses a log axis (null at 1); the frequentist naive/stc estimates are on the log-rate scale, so we exponentiate them onto the rate-ratio scale. ML-UMR is shown in both target populations. The index population is normally the decision-relevant one for HTA, since cost-effectiveness models are built for the population a reimbursement decision is about, which is usually the index trial’s (Chandler and Ishak 2026). STC is standardized to the comparator population; the naive contrast is not standardized to either population.

The SPFA rate ratio above is the same in the index and comparator populations, and the conditional rate ratios under Conditional effects below equal it too. At first glance that seems to contradict the point just made, that the index population is the one that matters for the decision. It does not: this is a special case. Under SPFA with a Poisson log link the rate ratio is directly transportable in the sense of Chandler and Ishak (2026), meaning the treatment effect is the same in every population. The log link is nonlinear, but the marginal rate still factorizes as \mathbb{E}[\exp(\mu_k+x^\top\beta)]=\exp(\mu_k)\,\mathbb{E}[\exp(x^\top\beta)], and under SPFA the shared second factor cancels in the ratio. What remains, \exp(\mu_{\text{index}}-\mu_{\text{comparator}}), is also the conditional rate ratio at every covariate profile, so the target population cannot move the SPFA rate ratio, just as it cannot move the SPFA mean difference in vignette("continuous-outcomes"). mlumr standardizes rates per unit exposure, so a difference in follow-up between the populations does not enter the ratio either (here each child contributes one unit of exposure).

The target population still matters in this example in three ways. The absolute predictions under Absolute predictions below, the expected dmft for each treatment, depend on it. The relaxed model gives each treatment its own \beta, which puts the covariate distribution back into the contrast, so its two rows differ. And effect measures that are not collapsible, such as the odds ratio in vignette("binary-outcomes") and the hazard ratio in vignette("survival-outcomes"), differ between populations even under SPFA, because they have no such factorization. So lead with the population relevant to the decision as usual; for this model and this measure the index and comparator answers simply coincide.

rr_spfa <- marginal_effects(fit_spfa, population = "both")
rr_rel  <- marginal_effects(fit_relaxed, population = "both")
# One row per (model, population); `pop()` pulls the requested one.
pop <- function(d, which) d[d$population == which, ]
forest_df <- data.frame(
  label = c("Naive (unstandardized)", "STC (comparator)",
            "ML-UMR SPFA (index)", "ML-UMR SPFA (comparator)",
            "ML-UMR relaxed (index)", "ML-UMR relaxed (comparator)"),
  est = c(exp(res_naive$estimate), exp(res_stc$estimate),
          pop(rr_spfa, "Index")$mean, pop(rr_spfa, "Comparator")$mean,
          pop(rr_rel, "Index")$mean, pop(rr_rel, "Comparator")$mean),
  lo  = c(exp(res_naive$ci_lower), exp(res_stc$ci_lower),
          pop(rr_spfa, "Index")$q2.5, pop(rr_spfa, "Comparator")$q2.5,
          pop(rr_rel, "Index")$q2.5, pop(rr_rel, "Comparator")$q2.5),
  hi  = c(exp(res_naive$ci_upper), exp(res_stc$ci_upper),
          pop(rr_spfa, "Index")$q97.5, pop(rr_spfa, "Comparator")$q97.5,
          pop(rr_rel, "Index")$q97.5, pop(rr_rel, "Comparator")$q97.5)
)
mlumr_forest(forest_df, ref_line = 1, log_x = TRUE,
             x = "Rate ratio (SDF vs NSF)",
             title = "dmft count rate ratio",
             subtitle = "Unadjusted vs population-adjusted, in both target populations")

plot of chunk forest

Both models’ standardized rate ratios in both populations, as a table:

knitr::kable(rbind(cbind(Model = "SPFA", rr_spfa),
                   cbind(Model = "Relaxed", rr_rel)),
   caption = "Standardized rate ratio (SDF vs NSF), both models and both populations")

Standardized rate ratio (SDF vs NSF), both models and both populations
Model	variable	effect	population	mean	sd	q2.5	q50	q97.5
SPFA	delta_index	RR	Index	0.8118294	0.0425393	0.7305854	0.8107814	0.8985652
SPFA	delta_comparator	RR	Comparator	0.8118294	0.0425393	0.7305854	0.8107814	0.8985652
Relaxed	delta_index	RR	Index	0.7045293	0.2060315	0.1850435	0.7620821	0.9688017
Relaxed	delta_comparator	RR	Comparator	0.8130829	0.0412464	0.7341966	0.8116482	0.8945281

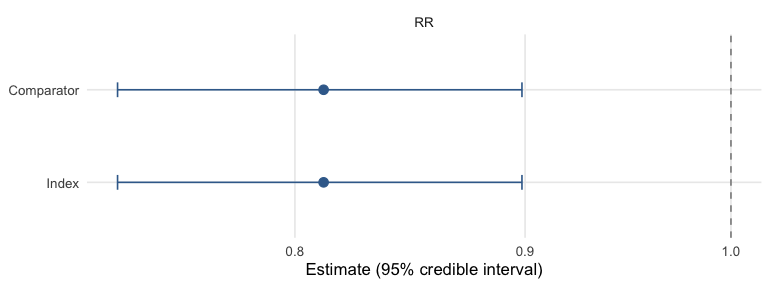

The standardized rate ratio in both populations, plotted straight from marginal_effects() with its plot() method (the null line sits at 1 for a ratio measure):

plot(marginal_effects(fit_spfa))

plot of chunk posterior-areas

Absolute predictions

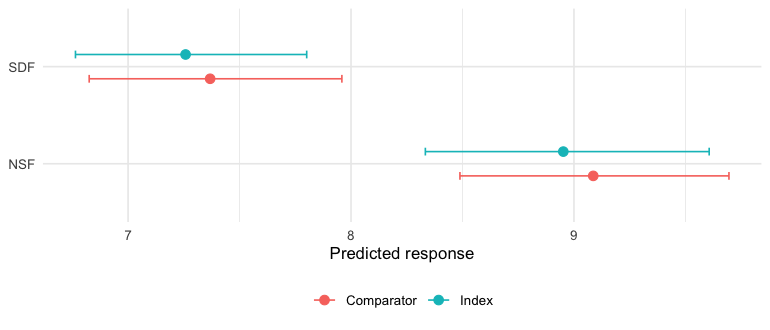

Absolute predicted expected counts for each treatment in each population, as a table and as a plot (the two populations distinguished by color):

knitr::kable(predict(fit_spfa, population = "both", type = "response"),
   caption = "Standardized expected dmft by treatment")

Standardized expected dmft by treatment
treatment	population	mean	sd	q2.5	q50	q97.5
SDF	Index	7.257886	0.2673108	6.764054	7.253321	7.801189
NSF	Index	8.952150	0.3214413	8.333397	8.941752	9.606489
SDF	Comparator	7.368066	0.2892304	6.825620	7.362935	7.959001
NSF	Comparator	9.086437	0.3036569	8.488564	9.080402	9.695144

plot(predict(fit_spfa, population = "both", type = "response"))

plot of chunk predict-plot

Conditional effects

Conditional effects evaluate the contrast at specific covariate profiles rather than averaging over a population, useful for checking whether the rate ratio is plausibly constant across the prognostic range (the SPFA assumption) or varies with baseline bacterial load. Under SPFA every profile gives the same rate ratio, equal to the marginal one in both populations, for the reason given under Treatment effects:

profiles <- data.frame(age = c(4, 5, 6), log_cfu = c(9, 11, 13))
knitr::kable(conditional_effects(fit_spfa, newdata = profiles),
   caption = "Conditional rate ratios at three covariate profiles")

Conditional rate ratios at three covariate profiles
profile	effect	mean	sd	q2.5	q50	q97.5
1	RR	0.8118294	0.0425393	0.7305854	0.8107814	0.8985653
2	RR	0.8118294	0.0425393	0.7305854	0.8107814	0.8985653
3	RR	0.8118294	0.0425393	0.7305854	0.8107814	0.8985653

Model comparison

Compare SPFA against the relaxed model with leave-one-out cross-validation and DIC. A markedly better relaxed fit would suggest effect modification, but the comparator coefficients are weakly identified from a single AgD row, so treat it as suggestive and check prior_sensitivity() (see vignette("fitting-and-diagnostics")).

compare_models(SPFA = fit_spfa, Relaxed = fit_relaxed, criterion = "loo")
#>
#> Model Comparison (LOO)
#> ======================
#>
#>    model elpd_diff se_diff p_worse       diag_diff      diag_elpd
#>  Relaxed       0.0     0.0      NA                 1 k_psis > 0.7
#>     SPFA      -0.3     0.2    0.95 |elpd_diff| < 4 1 k_psis > 0.7
#>
#>
#> elpd_diff is the difference in expected log pointwise predictive
#> density vs the best model, and se_diff is its standard error: the
#> uncertainty about that difference, not evidence for it. Read the two
#> together. A difference small relative to se_diff is not distinguished
#> from zero by this comparison, whatever se_diff itself is.
#> Treat any ratio as a heuristic, not a decision rule, and check the
#> PSIS diagnostics and whether the difference matters for the
#> prediction you care about.
compare_models(SPFA = fit_spfa, Relaxed = fit_relaxed, criterion = "dic")
#>
#> Model Comparison (DIC)
#> ======================
#>
#>    Model    DIC   pD Delta_DIC
#>  Relaxed 518.62 4.07      0.00
#>     SPFA 518.77 4.09      0.14
#>
#> Lower DIC = better fit. Delta_DIC > 5 is a rough heuristic for
#> meaningful difference, not a formally calibrated threshold.
#> DIC should not be the sole basis for model selection.

Interpretation

The naive rate ratio mixes the treatment contrast with between-study differences, including baseline bacterial-load imbalance.
In this example STC and ML-UMR SPFA both standardize over the named covariates and broadly agree. ML-UMR reports posterior uncertainty and effects in both populations, which matters when the decision population is not the comparator’s.
The relaxed model frees the shared-effect assumption but pays for it in precision here, because the comparator-specific coefficients lean on one aggregate row.
A rate ratio below 1 favors SDF (fewer affected teeth) here. Use an anchored network meta-analysis when the network is connected; reserve ML-UMR for the unanchored case, accepting wider intervals as the price of discarding within-trial randomization.

Data provenance. caries_ipd / caries_agd are simulated (mlumr’s own work, GPL-3), generated with synthpop (sequential CART) (Nowok et al. 2016) from a silver-diamine-fluoride vs nano-silver-fluoride dental caries trial (Ammar et al. 2025) (CC BY 4.0) while preserving its covariate relationships, with a plausible SDF treatment effect imposed for illustration; they are not real patient data. See data-raw/simulate_external_data.R.

References

Ammar, Nour et al. 2025. “Effect of Silver Diamine Fluoride and Nanosilver on Salivary Bacterial Counts in Children with Early Childhood Caries: A Randomized Controlled Clinical Trial.” BMC Oral Health 25: 945. https://doi.org/10.1186/s12903-025-06325-3.

Chandler, Conor, and K. Jack Ishak. 2026. Reframing Population-Adjusted Indirect Comparisons as a Transportability Problem: An Estimand-Based Perspective and Implications for Health Technology Assessment. Preprint. https://doi.org/10.48550/arXiv.2602.17041.

Nowok, Beata, Gillian M. Raab, and Chris Dibben. 2016. “synthpop: Bespoke Creation of Synthetic Data in R.” Journal of Statistical Software 74 (11): 1–26. https://doi.org/10.18637/jss.v074.i11.

Phillippo, D. M., S. Dias, A. E. Ades, et al. 2020. “Multilevel Network Meta-Regression for Population-Adjusted Treatment Comparisons.” Journal of the Royal Statistical Society: Series A (Statistics in Society) 183 (3): 1189–210. https://doi.org/10.1111/rssa.12579.
