Continuous outcomes: an unanchored mean-difference comparison • mlumr

library(mlumr)
library(ggplot2)
options(mc.cores = parallel::detectCores())

This vignette is a complete worked example of an unanchored indirect comparison for a continuous endpoint, using mlumr’s bundled shoulder_ipd and shoulder_agd example data. It is the continuous-outcome analogue of vignette("binary-outcomes"); for the shared data-preparation machinery see vignette("data-preparation"), for sampler/prior/diagnostic detail see vignette("fitting-and-diagnostics"), and for how to choose between methods see vignette("choosing-a-method").

Simulated data. shoulder_ipd / shoulder_agd are simulated (not real patient records): they are generated with the synthpop package (sequential CART) (Nowok et al. 2016) from the FIMPACT 10-year shoulder trial (Kanto et al. 2025) (dataset CC BY 4.0), preserving its covariate and covariate-outcome relationships (fidelity validated with the syntheticdata package), much as multinma builds its own example data. The two trial arms are treated as separate single-arm sources to illustrate an unanchored comparison; in a real ML-UMR application the comparator would come from a different study.

Hypothetical single-arm trials. FIMPACT is a randomized trial. Treating its ASD and exercise therapy arms as two separate sources turns them into hypothetical single-arm trials and leaves fully disconnected evidence; we do this only to illustrate ML-UMR. In practice, randomized trials should never be analyzed this way: the randomized comparison, or ML-NMR or another appropriate method when trials are connected through a common arm, should be used for them. ML-UMR should only be used for fully unanchored, single-arm comparisons.

The clinical question

We want the relative efficacy of two treatments for subacromial shoulder pain on pain on activity (a visual analogue scale, VAS 0-100, lower = better) at 24 months, when:

Index (IPD). We hold individual patient data for arthroscopic subacromial decompression (ASD).
Comparator (AgD). Only published aggregate data are available for exercise therapy (ET): an arm mean, its standard error, and a baseline-characteristics table.

The two arms come from single-arm sources with no common comparator, so the comparison is unanchored and relies on the conditional-constancy / shared-prognostic-factor assumptions discussed in vignette("introduction"). ML-UMR adjusts for cross-trial differences in prognostic factors by standardizing the IPD model to the comparator population (and vice versa).

The ML-UMR model

On the index IPD, ML-UMR fits a linear (identity-link) model for the mean outcome, \mathbb{E}[y_{ik}\mid x_i]=\mu_k+x_i^\top\beta_k,\qquad y_{ik}\sim\mathrm{N}(\mu_k+x_i^\top\beta_k,\ \sigma^2), where \mu_k is a treatment-specific intercept and \beta_k the vector of prognostic-factor coefficients. The aggregate comparator does not contribute patient rows; instead its likelihood is the individual model integrated over the comparator covariate distribution f_{\text{AgD}}(x) implied by the published moments, \bar\theta_k=\mathbb{E}[Y\mid \text{AgD population}]=\int(\mu_k+x^\top\beta_k)\,f_{\text{AgD}}(x)\,dx, which mlumr approximates with quasi-Monte Carlo integration points (see Setting up the ML-UMR data). This is the same population-adjustment device as ML-NMR (Phillippo et al. 2020), specialized to the unanchored two-study case.

Two variants differ only in how the prognostic effects are shared across treatments:

SPFA (shared prognostic factors) assumes \beta_{\text{index}}=\beta_{\text{comparator}}=\beta, the conditional-constancy / shared-effect-modifier assumption.
Relaxed frees them, \beta_{\text{index}}\neq\beta_{\text{comparator}}, allowing effect modification at the cost of identifiability (the comparator coefficients are informed only by the single AgD likelihood term).

Because the identity link is linear, the mean difference is collapsible: the integral above passes through the linear predictor unchanged, so under SPFA the index- and comparator-population effects coincide and differ only under genuine effect modification (the relaxed model). This is the simplest family in mlumr precisely because no aggregation bias arises from a nonlinear link (contrast the log odds ratio in vignette("binary-outcomes")).

data("shoulder_ipd")     # index IPD (ASD), bundled with mlumr
data("shoulder_agd")     # comparator AgD (ET)

covariates <- c("age", "baseline_vas")   # baseline pain is the key prognostic

A glimpse of the index IPD (one row per patient) and the single aggregate comparator row:

knitr::kable(head(shoulder_ipd), caption = "Index IPD (ASD), first rows")

Index IPD (ASD), first rows
study	treatment	subject	age	sex	baseline_vas	pain_vas_activity
FIMPACT	ASD	1	47.5	0	76	10
FIMPACT	ASD	2	57.0	0	38	0
FIMPACT	ASD	3	57.0	0	85	0
FIMPACT	ASD	4	44.0	1	52	0
FIMPACT	ASD	5	50.5	0	87	8
FIMPACT	ASD	6	44.0	0	86	69

knitr::kable(shoulder_agd[, c("treatment", "n", "y_mean", "y_se",
                              "age_mean", "baseline_vas_mean")],
   caption = "Comparator AgD (ET)")

Comparator AgD (ET)
treatment	n	y_mean	y_se	age_mean	baseline_vas_mean
ET	153	25.24837	2.386471	50.02288	74.59477

Covariate balance

Population adjustment is motivated by the fact that the two trial populations differ on prognostic factors. Comparing the index sample means against the published comparator means shows the imbalance we must adjust for, here baseline pain is the key prognostic factor and the outcome we are comparing:

balance <- data.frame(
  Covariate = c("Pain VAS on activity (24m)", "Age (years)", "Baseline pain VAS"),
  Index_ASD = c(mean(shoulder_ipd$pain_vas_activity), mean(shoulder_ipd$age),
                mean(shoulder_ipd$baseline_vas)),
  Comparator_ET = c(shoulder_agd$y_mean, shoulder_agd$age_mean,
                    shoulder_agd$baseline_vas_mean)
)
knitr::kable(balance, caption = "Prognostic-factor balance: index vs comparator population")

Prognostic-factor balance: index vs comparator population
Covariate	Index_ASD	Comparator_ET
Pain VAS on activity (24m)	16.65306	25.24837
Age (years)	49.62925	50.02288
Baseline pain VAS	66.93878	74.59477

Setting up the ML-UMR data

For a continuous IPD outcome use set_ipd() with family = "normal" and the outcome column; set_agd() takes the comparator arm mean (outcome_mean), its standard error (outcome_se), the sample size, and the covariate summaries. Covariate column suffixes (_mean, _sd) are stripped to match the IPD names.

ipd <- set_ipd(shoulder_ipd, treatment = "treatment", outcome = "pain_vas_activity",
               family = "normal", covariates = covariates)
agd <- set_agd(shoulder_agd, treatment = "treatment", family = "normal",
               outcome_n = "n", outcome_mean = "y_mean", outcome_se = "y_se",
               cov_means = c("age_mean", "baseline_vas_mean"),
               cov_sds   = c("age_sd", "baseline_vas_sd"),
               cov_types = c("continuous", "continuous"))
dat <- combine_data(ipd, agd)
dat
#> Unanchored Comparison Data (Continuous)
#> ====================================
#>
#> Index treatment (IPD): ASD
#>   N = 147
#>   Mean outcome = 16.653 (SD = 22.971)
#>
#> Comparator treatment (AgD): ET
#>   N = 153
#>   Mean outcome = 25.248, SE = 2.386
#>
#> Covariates ( 2 ): age, baseline_vas
#> Integration points: not yet added (use add_integration())

The comparator covariate distribution is represented by quasi-Monte Carlo integration points drawn from each covariate’s marginal (here normals for age and baseline VAS), correlated via a Gaussian copula calibrated from the IPD. We use a modest n_int = 64 here so the vignette builds quickly; a real analysis would use several hundred or more (see vignette("data-preparation")).

The normal marginal for baseline_vas is an approximation. A visual analog scale is bounded at 100, and the published mean of 74.6 with SD 19.2 puts about 9% of a normal’s mass above that ceiling, so some integration points describe scores the instrument cannot record. It is kept here because the aggregate data report only a mean and an SD, which is the usual situation, and because the comparison this vignette makes is insensitive to it. Where a bounded marginal matters, rescale the covariate to a proportion and use qlogitnorm, as vignette("binary-outcomes") does for body-surface area.

dat <- add_integration(dat, n_int = 64,
                       age          = distr(qnorm, mean = age_mean, sd = age_sd),
                       baseline_vas = distr(qnorm, mean = baseline_vas_mean,
                                            sd = baseline_vas_sd))

check_integration() confirms the quasi-Monte Carlo points reproduce the requested covariate moments, run it whenever covariates are correlated or n_int is small:

check_integration(
  dat,
  age          = distr(qnorm, mean = age_mean, sd = age_sd),
  baseline_vas = distr(qnorm, mean = baseline_vas_mean, sd = baseline_vas_sd)
)
#> Integration check: n_int = 64 vs 128
#> Resolution heuristic, max relative difference: 0.0350
#> Caution: 1-5% marginal relative difference. Consider increasing n_int.
#> Declared-target fidelity, max relative difference: 0.0685
#> Warning: grid moments differ from declared AgD moments by >5%.
#> Joint: max |cor(current) - cor(doubled)|: 0.0161
#> Joint resolution stable within the package's 0.05 heuristic.
#> Target (spearman): max |cor(doubled) - cor_target|: 0.0005

Frequentist benchmarks

The unadjusted (naive) comparison ignores the covariate imbalance; STC adjusts for it by parametric G-computation. Both are fast and serve as reference points. For the identity link STC and the naive mean difference share the outcome scale. Their gap reflects standardization plus outcome-model assumptions; it is not by itself an estimate of bias removed by adjustment.

res_naive <- naive(dat)
res_stc   <- stc(dat)
res_naive
#> Naive Unadjusted Indirect Comparison
#> =====================================
#>
#> Treatments: ASD vs ET
#>
#> Population basis: index-study outcome versus comparator-population outcome; no common standardized target.
#>
#> Mean outcomes:
#>   Index (IPD):      16.6531
#>   Comparator (AgD): 25.2484
#>
#> Mean Difference: -8.5953 (SE: 3.0471)
#> 95% CI: [-14.5675, -2.6231]
#>
#> All effect measures (95% CI):
#>   Mean difference               -8.5953 (SE 3.0471) [-14.5675, -2.6231]
res_stc
#> Simulated Treatment Comparison (G-computation)
#> ===============================================
#>
#> Treatments: ASD vs ET
#>
#> Estimand population: comparator
#> Treating this as the index-population effect requires a separate effect-equality assumption; this calculation does not transport to the index population.
#>
#> Marginalized E[Y|index trt, comp pop]: 17.5278
#> Observed E[Y|comp trt, comp pop]:      25.2484
#>
#> Mean Difference: -7.7206 (SE: 3.0863)
#> 95% CI: [-13.7696, -1.6715]
#>
#> All effect measures (95% CI):
#>   Mean difference               -7.7206 (SE 3.0863) [-13.7696, -1.6715]
#>
#> Outcome model coefficients:
#>  (Intercept)          age baseline_vas
#>      28.6735      -0.4126       0.1263

Fitting the ML-UMR models

For the normal family the canonical link is identity, so coefficients are on the outcome scale. We fit both the shared-prognostic-factor model (SPFA) and the relaxed model (treatment-specific prognostic effects). A weakly informative, autoscaled coefficient prior keeps the prior comparable across covariates of different magnitudes (age in years vs VAS in points): each scale is divided by the covariate’s SD and, because the identity-link coefficients are in outcome units, multiplied by the outcome’s SD, so prior_normal(0, 1, autoscale = TRUE) allows about one outcome SD per covariate SD. The relaxed model uses a slightly tighter prior and a higher adapt_delta because its comparator-specific coefficients lean on one aggregate row.

fit_spfa <- mlumr(dat, model = "spfa", link = "identity",
                  prior_beta = prior_normal(0, 1, autoscale = TRUE),
                  chains = 4, iter = 2000, warmup = 1000, seed = 2026, refresh = 0)
#> Running MCMC with 4 parallel chains...
#> Chain 1 finished in 0.7 seconds.
#> Chain 3 finished in 0.6 seconds.
#> Chain 2 finished in 0.8 seconds.
#> Chain 4 finished in 0.6 seconds.
#>
#> All 4 chains finished successfully.
#> Mean chain execution time: 0.7 seconds.
#> Total execution time: 1.1 seconds.
fit_relaxed <- mlumr(dat, model = "relaxed", link = "identity",
                     prior_beta = prior_normal(0, 0.75, autoscale = TRUE),
                     chains = 4, iter = 2000, warmup = 1000,
                     adapt_delta = 0.95, seed = 2026, refresh = 0)
#> Running MCMC with 4 parallel chains...
#> Chain 3 finished in 1.2 seconds.
#> Chain 1 finished in 1.4 seconds.
#> Chain 2 finished in 1.3 seconds.
#> Chain 4 finished in 1.3 seconds.
#>
#> All 4 chains finished successfully.
#> Mean chain execution time: 1.3 seconds.
#> Total execution time: 1.7 seconds.
summary(fit_spfa)
#> ML-UMR Model Summary
#> ====================
#>
#> Model: SPFA
#> Family: Continuous (Normal)
#> Link: identity
#> Engine: cmdstanr
#> Treatments: ASD (IPD) vs ET (AgD)
#>
#> MCMC Diagnostics:
#>   Divergent transitions: 0
#>   Max treedepth hits: 0
#>   Max Rhat: 1.003
#>   Min ESS: 1735
#>
#> Intercepts (identity scale):
#>       variable     mean       sd     2.5%    97.5%     Rhat
#>       mu_index 17.08156 1.910640 13.38241 20.85864 1.000279
#>  mu_comparator 24.74822 2.410496 20.01878 29.47966 1.000891
#>
#> Residual SD:
#>  variable     mean       sd     2.5%    97.5%      Rhat
#>     sigma 22.94555 1.391024 20.44056 25.91793 0.9995409
#>
#> Regression Coefficients:
#>            variable       mean         sd        2.5%     97.5%     Rhat
#>           beta[age] -0.4060405 0.27235117 -0.94963883 0.1154502 1.003141
#>  beta[baseline_vas]  0.1252321 0.07557988 -0.02718079 0.2698394 1.000122
#>
#> Marginal Treatment Effects:
#>   Mean Differences:
#>          variable      mean       sd      2.5%     97.5%
#>       delta_index -7.666666 3.086996 -13.82362 -1.513449
#>  delta_comparator -7.666666 3.086996 -13.82362 -1.513449

Priors

The intercepts and the residual SD of a normal model are in the outcome’s units too, so the package defaults are read in units of the IPD outcome SD s_y: these fits use \mu_k\sim\mathrm{N}(0,(10\,s_y)^2) for the intercepts, the autoscaled \beta_j\sim\mathrm{N}(0,(s_y/s_{x_j})^2) for the coefficients, and a half-normal prior with scale 2.5\,s_y on the residual standard deviation \sigma (a normal() prior truncated at zero by the <lower=0> constraint). A fixed \mathrm{N}(0,10^2) on an intercept near 25 VAS points would pull it toward zero, and the comparator intercept, which rests on one aggregate mean, the most. prior_summary() shows exactly what was passed to Stan, including the autoscaled coefficient scales:

prior_summary(fit_spfa)
#> Priors for ML-UMR Fit
#> =====================
#>
#> Intercepts (mu_index, mu_comparator):
#>   normal(0, 10)
#>   (package default, mlumr 0.1.0.9000)
#>   used as normal(0, 230), the default times the IPD outcome SD (23)
#>
#> Regression coefficients (beta):
#>   Family: normal
#>   coefficient mean scale autoscaled   sd_x
#>           age    0 3.276       TRUE  7.012
#>  baseline_vas    0 0.900       TRUE 25.524
#>   (scale = user_scale * sd_y / sd_x for autoscaled rows)
#>   (sd_y = 23 is the IPD outcome SD; the identity link puts
#>    the coefficients in outcome units)
#>
#> Residual SD (sigma, half-normal via <lower=0>):
#>   normal(0, 2.5)
#>   (package default, mlumr 0.1.0.9000)
#>   used as normal(0, 57.4), the default times the IPD outcome SD (23)

The data are substantially more informative than the priors, the posterior intercepts are much tighter than their \mathrm{N}(0,(10\,s_y)^2) prior:

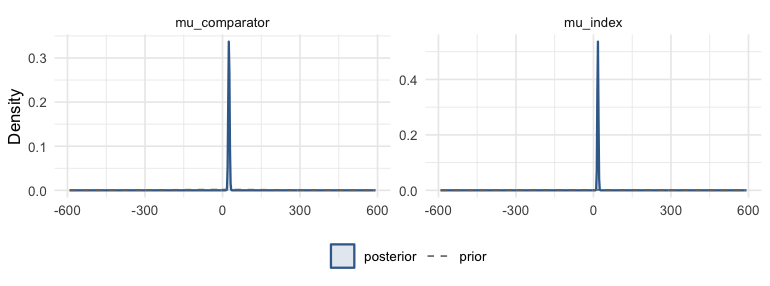

plot_prior_posterior(fit_spfa, pars = c("mu_index", "mu_comparator"))

plot of chunk prior-post

Aggregate-data scale conventions

For the normal family outcome_mean and outcome_se must be on the original (arithmetic) scale, the same scale as the IPD outcome. If a published comparator reports a geometric mean, a mean on the log scale, or a change-from-baseline on a transformed scale, that is a different quantity and not a rescaling of the one this argument wants. Exponentiating a log-scale mean returns the geometric mean: for a lognormal outcome with log-scale SD 1 the geometric mean is exp(0) = 1 while the arithmetic mean is exp(0.5) = 1.65. Propagating the standard error does not fix it, because the mismatch is in the estimand rather than in its uncertainty. Ask for the arithmetic mean and its SE, or, if you are willing to assume lognormality and have the log-scale SD, compute exp(m + s^2 / 2) and propagate m and s jointly. Passing a log-scale summary while fitting on the identity link silently biases the comparator likelihood. The residual likelihood here is Gaussian, so an influential observation in the IPD can pull the fit. A heavier-tailed prior on the coefficients does not address this: the prior governs the coefficients, not the residual distribution, and a heavier tail permits larger coefficients rather than suppressing them. mlumr’s normal family provides no heavy-tailed residual distribution, so identify influential observations directly, report their effect on the estimate, and use prior_sensitivity() only for what it measures, namely sensitivity to the coefficient prior.

Convergence

mlumr() warns automatically about divergences, treedepth saturation, high \hat R, and low effective sample size. They are clean here:

data.frame(
  n_divergent  = fit_spfa$diagnostics$n_divergent,
  max_treedepth = fit_spfa$diagnostics$n_max_treedepth,
  max_Rhat     = round(max(fit_spfa$summary$Rhat, na.rm = TRUE), 3),
  min_ESS      = round(min(fit_spfa$summary$n_eff, na.rm = TRUE))
)
#>   n_divergent max_treedepth max_Rhat min_ESS
#> 1           0             0    1.003    1735

Treatment effects

For a continuous outcome the population-standardized effect is the mean difference (MD), reported in both populations. Because the MD is collapsible and SPFA shares one \beta across treatments, the standardized contrast reduces to \mu_{\text{index}}-\mu_{\text{comparator}}, which contains no covariates at all. The index- and comparator-population values are therefore identical, draw for draw, not merely close:

knitr::kable(marginal_effects(fit_spfa), caption = "SPFA standardized mean difference (ASD vs ET)")

SPFA standardized mean difference (ASD vs ET)
variable	effect	population	mean	sd	q2.5	q50	q97.5
delta_index	MD	Index	-7.666666	3.086996	-13.82362	-7.684885	-1.513449
delta_comparator	MD	Comparator	-7.666666	3.086996	-13.82362	-7.684885	-1.513449

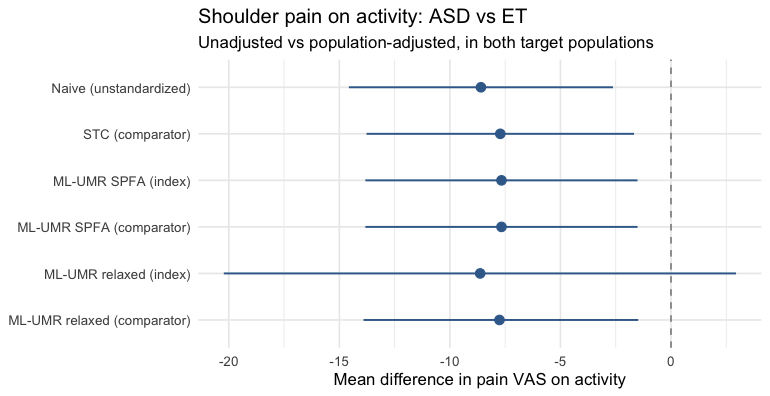

A forest plot makes the value of adjustment visible, on the mean difference. ML-UMR is shown in both target populations. The index population is normally the decision-relevant one for HTA, since cost-effectiveness models are built for the population a reimbursement decision is about, which is usually the index trial’s (Chandler and Ishak 2026); the STC is standardized to the comparator population. The naive contrast is not standardized to either population. The two SPFA rows coincide exactly, for the algebraic reason just given; the relaxed rows do separate, because freeing \beta by treatment puts the covariate distribution back into the contrast. That gap is effect modification, not aggregation bias.

md_spfa <- marginal_effects(fit_spfa, population = "both")
md_rel  <- marginal_effects(fit_relaxed, population = "both")
# One row per (model, population); `pop()` pulls the requested one.
pop <- function(d, which) d[d$population == which, ]
forest_df <- data.frame(
  label = c("Naive (unstandardized)", "STC (comparator)",
            "ML-UMR SPFA (index)", "ML-UMR SPFA (comparator)",
            "ML-UMR relaxed (index)", "ML-UMR relaxed (comparator)"),
  est = c(res_naive$estimate, res_stc$estimate,
          pop(md_spfa, "Index")$mean, pop(md_spfa, "Comparator")$mean,
          pop(md_rel, "Index")$mean, pop(md_rel, "Comparator")$mean),
  lo  = c(res_naive$ci_lower, res_stc$ci_lower,
          pop(md_spfa, "Index")$q2.5, pop(md_spfa, "Comparator")$q2.5,
          pop(md_rel, "Index")$q2.5, pop(md_rel, "Comparator")$q2.5),
  hi  = c(res_naive$ci_upper, res_stc$ci_upper,
          pop(md_spfa, "Index")$q97.5, pop(md_spfa, "Comparator")$q97.5,
          pop(md_rel, "Index")$q97.5, pop(md_rel, "Comparator")$q97.5)
)
mlumr_forest(forest_df, ref_line = 0,
             x = "Mean difference in pain VAS on activity",
             title = "Shoulder pain on activity: ASD vs ET",
             subtitle = "Unadjusted vs population-adjusted, in both target populations")

plot of chunk forest

Both models’ standardized mean differences in both populations, as a table:

knitr::kable(rbind(cbind(Model = "SPFA", md_spfa),
                   cbind(Model = "Relaxed", md_rel)),
   caption = "Standardized mean difference (ASD vs ET), both models and both populations")

Standardized mean difference (ASD vs ET), both models and both populations
Model	variable	effect	population	mean	sd	q2.5	q50	q97.5
SPFA	delta_index	MD	Index	-7.666666	3.086996	-13.82362	-7.684885	-1.513449
SPFA	delta_comparator	MD	Comparator	-7.666666	3.086996	-13.82362	-7.684885	-1.513449
Relaxed	delta_index	MD	Index	-8.630222	5.967409	-20.22569	-8.543969	2.941152
Relaxed	delta_comparator	MD	Comparator	-7.757583	3.181784	-13.90544	-7.767480	-1.480989

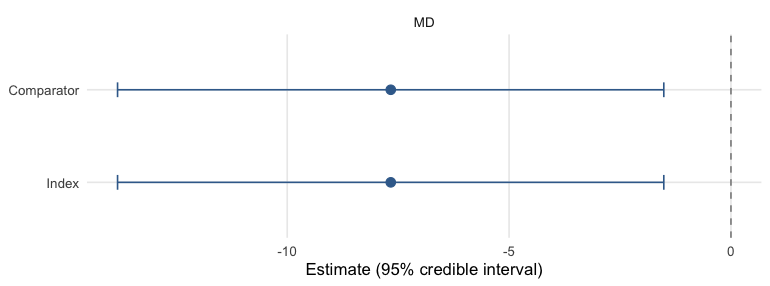

The standardized mean difference in both populations, plotted straight from marginal_effects() with its plot() method:

plot(marginal_effects(fit_spfa))

plot of chunk posterior-areas

Absolute predictions

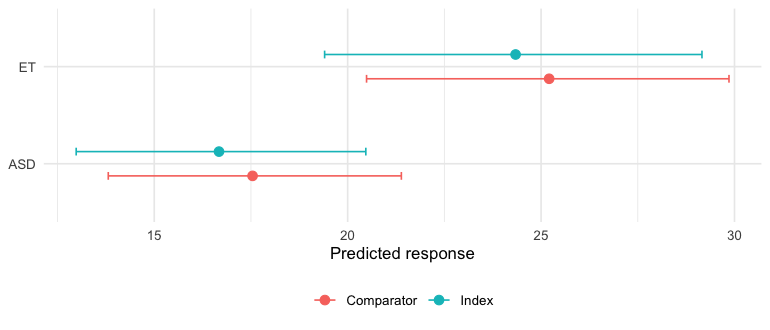

Absolute predicted mean outcomes for each treatment in each population, as a table and as a plot (the two populations distinguished by color):

knitr::kable(predict(fit_spfa, population = "both", type = "response"),
   caption = "Standardized mean pain VAS by treatment")

Standardized mean pain VAS by treatment
treatment	population	mean	sd	q2.5	q50	q97.5
ASD	Index	16.67409	1.888378	12.98256	16.64092	20.46974
ET	Index	24.34076	2.463021	19.40438	24.37147	29.15898
ASD	Comparator	17.54181	1.969939	13.81189	17.51676	21.38808
ET	Comparator	25.20847	2.392553	20.48849	25.24238	29.85741

plot(predict(fit_spfa, population = "both", type = "response"))

plot of chunk predict-plot

Conditional effects

Conditional effects evaluate the contrast at specific covariate profiles rather than averaging over a population, useful for checking whether the effect is plausibly constant across the prognostic range (the SPFA assumption) or varies with baseline pain:

profiles <- data.frame(age = c(45, 55, 65), baseline_vas = c(50, 70, 90))
knitr::kable(conditional_effects(fit_spfa, newdata = profiles),
   caption = "Conditional mean differences at three covariate profiles")

Conditional mean differences at three covariate profiles
profile	effect	mean	sd	q2.5	q50	q97.5
1	MD	-7.666666	3.086996	-13.82362	-7.684886	-1.513448
2	MD	-7.666666	3.086996	-13.82362	-7.684886	-1.513448
3	MD	-7.666666	3.086996	-13.82362	-7.684886	-1.513448

Model comparison

Compare SPFA against the relaxed model with leave-one-out cross-validation and DIC. A markedly better relaxed fit would suggest effect modification, but the comparator coefficients are weakly identified from a single AgD row, so treat it as suggestive and check prior_sensitivity() (see vignette("fitting-and-diagnostics")).

compare_models(SPFA = fit_spfa, Relaxed = fit_relaxed, criterion = "loo")
#>
#> Model Comparison (LOO)
#> ======================
#>
#>    model elpd_diff se_diff p_worse       diag_diff      diag_elpd
#>  Relaxed       0.0     0.0      NA                 1 k_psis > 0.7
#>     SPFA       0.0     0.2    0.57 |elpd_diff| < 4 1 k_psis > 0.7
#>
#> elpd_diff is the difference in expected log pointwise predictive
#> density vs the best model, and se_diff is its standard error: the
#> uncertainty about that difference, not evidence for it. Read the two
#> together. A difference small relative to se_diff is not distinguished
#> from zero by this comparison, whatever se_diff itself is.
#> Treat any ratio as a heuristic, not a decision rule, and check the
#> PSIS diagnostics and whether the difference matters for the
#> prediction you care about.
compare_models(SPFA = fit_spfa, Relaxed = fit_relaxed, criterion = "dic")
#>
#> Model Comparison (DIC)
#> ======================
#>
#>    Model     DIC   pD Delta_DIC
#>  Relaxed 1346.50 5.13      0.00
#>     SPFA 1346.77 5.20      0.27
#>
#> Lower DIC = better fit. Delta_DIC > 5 is a rough heuristic for
#> meaningful difference, not a formally calibrated threshold.
#> DIC should not be the sole basis for model selection.

Interpretation

The naive mean difference mixes the treatment contrast with between-study differences, including the baseline-pain imbalance.
In this example STC and ML-UMR SPFA both standardize over the named covariates and broadly agree. ML-UMR reports posterior uncertainty and effects in both populations, which matters when the decision population is not the comparator’s.
The relaxed model frees the shared-effect assumption but pays for it in precision here, because the comparator-specific coefficients lean on one aggregate row.
Lower pain favors ASD here, but the explicit cost of the unanchored regime is wider intervals, since within-trial randomization is discarded. When the evidence network is connected (a shared comparator exists), prefer an anchored network meta-analysis; reserve ML-UMR for genuinely unanchored evidence.

Data provenance. shoulder_ipd / shoulder_agd are simulated (mlumr’s own work, GPL-3), generated with synthpop (sequential CART) (Nowok et al. 2016) from the FIMPACT 10-year shoulder trial (Kanto et al. 2025) (dataset CC BY 4.0) while preserving its covariate-outcome relationships; they are not real patient data. See data-raw/simulate_external_data.R.

References

Chandler, Conor, and K. Jack Ishak. 2026. Reframing Population-Adjusted Indirect Comparisons as a Transportability Problem: An Estimand-Based Perspective and Implications for Health Technology Assessment. Preprint. https://doi.org/10.48550/arXiv.2602.17041.

Kanto, Kari et al. 2025. “Arthroscopic Subacromial Decompression Versus Diagnostic Arthroscopy and Exercise Therapy for Shoulder Impingement: 10 Year Follow-up of the FIMPACT Randomised, Placebo Surgery Controlled Trial.” BMJ 391: e086201. https://doi.org/10.1136/bmj-2025-086201.

Nowok, Beata, Gillian M. Raab, and Chris Dibben. 2016. “synthpop: Bespoke Creation of Synthetic Data in R.” Journal of Statistical Software 74 (11): 1–26. https://doi.org/10.18637/jss.v074.i11.

Phillippo, D. M., S. Dias, A. E. Ades, et al. 2020. “Multilevel Network Meta-Regression for Population-Adjusted Treatment Comparisons.” Journal of the Royal Statistical Society: Series A (Statistics in Society) 183 (3): 1189–210. https://doi.org/10.1111/rssa.12579.
